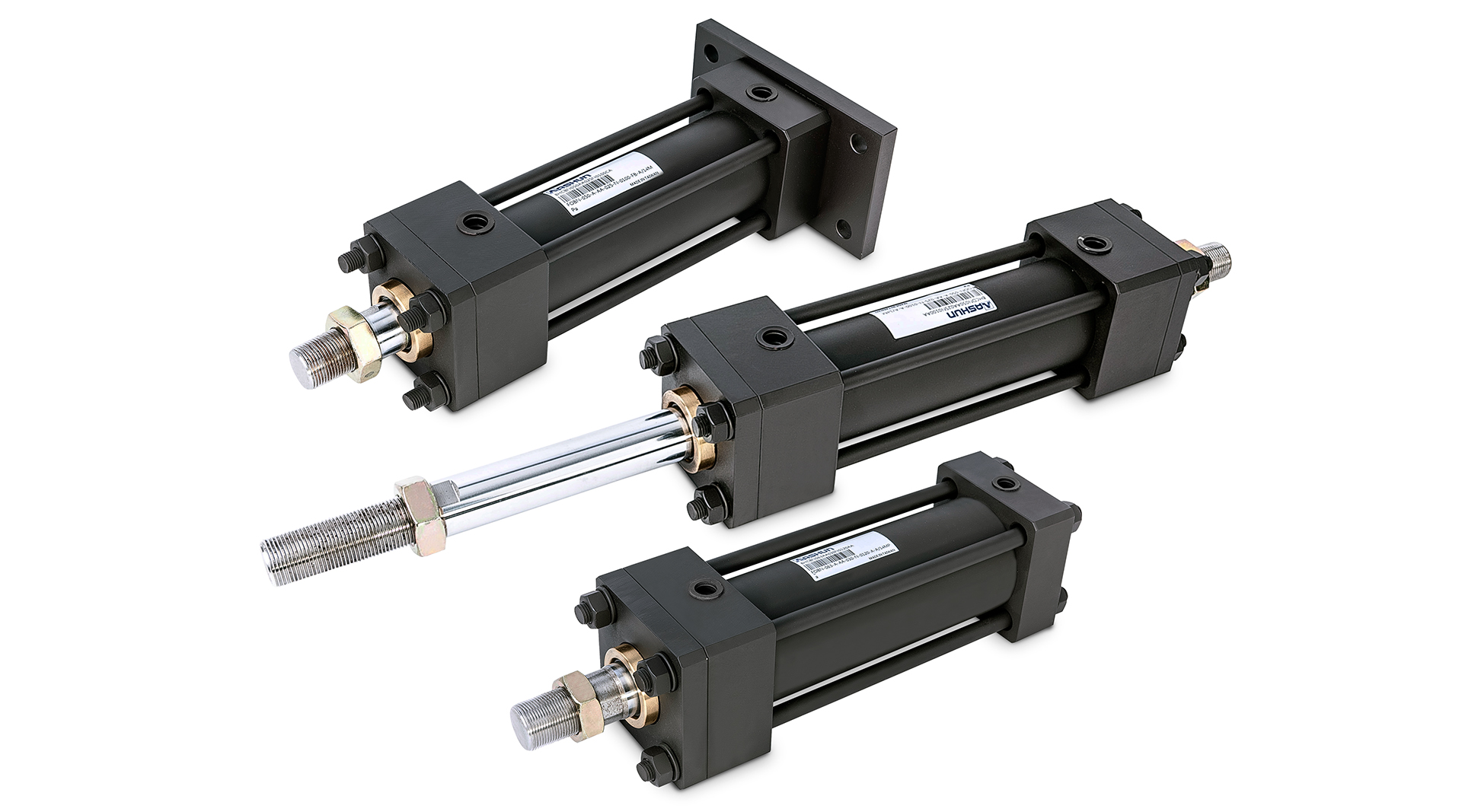

Specifications
| Bore sizes of cylinder(mm) | Ø40, Ø50, Ø63, Ø80, Ø100 |
|---|---|
| Material of cylinder barrel | 鋼管 Carbon steel STKM-13C OR ST52/白鐵管 Stainless tubes SUS 304 |
| The range of pressure(MPa) | 0.3-14MPa(3-140kgf/cm²) |
| The range of temperature(c°) | NBR/PU{-25°~+80°(C°)}/VITON{-10°~150°(C°)} |
| The range of speed(mm/sec) | 8~300(mm/sec) |
| Max. Permissible STROKE.mm | Ø40:40, Ø50:40, Ø63:45, Ø80:45, Ø100:50 |
| Tolerance of stroke | 100以下:0~+0.8, 100~250:0~+1.0, 250~630:0~+1.25, 631~1000:0~+1.4, 1001~1600:0~+1.6, 1601以上:0~+1.8 |
| Accuracy of Threading at Rod End | JIS 6g/6H(相當JIS 2級) |
Technical Features
- Front Flange Mounting：Designed with a front flange for secure face-mounting applications.
- Axial Thrust Optimization：Structural reinforcement specifically engineered for axial pushing forces.
- High Precision Seals：Equipped with premium seals to ensure low friction and leak-free performance.
- Standardized Specification Production：Complies with industrial standards for simplified replacement and maintenance.
- High Rigidity Piston Rod：Features a hardened, chrome-plated piston rod to maximize wear resistance.
Highlights
- 另有高壓可特殊訂製
- 另有低摩擦高速油封選用 (1000mm以上/sec)
Application ScenariosMetal Bending MachineHeavy Stamping EquipmentAluminum Die Casting MoldAutomatic Lifting PlatformPlastic Injection ClampingSteel Sheet Shearing MachineryVertical Positioning Mechanism
