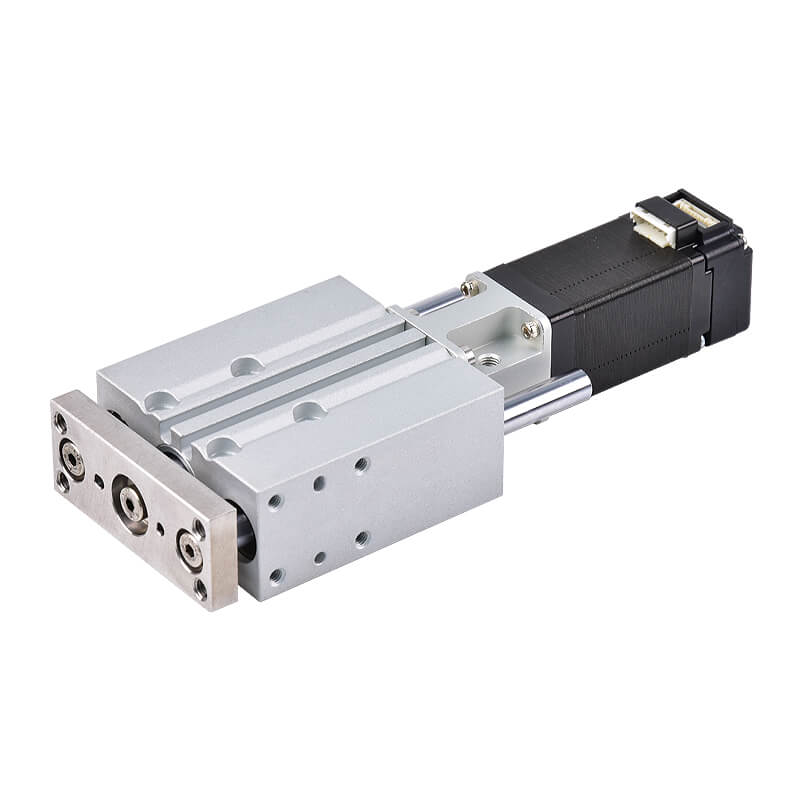

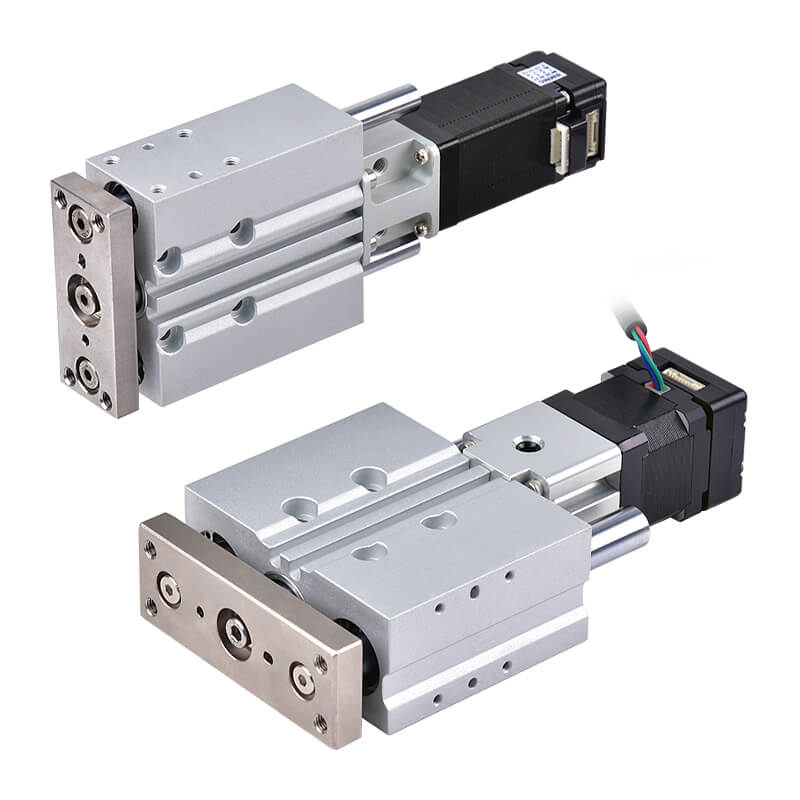

The MEGS series twin rod electric cylinder offers high precision, lightweight design, and multiple mounting options. It is engineered to withstand torque and side loads, providing excellent repeatability and comes standard with a magnetic switch. It is an ideal choice for automation applications requiring precise control and stable operation.
Highlights
- Max. thrust 270 N Repeatability ±0.02 mm
- Effectively supports lateral forces and torque, making it suitable for handling eccentric loads
- Anodized aluminum body Resistant to wear and corrosion
- Built-in linear bushings and integrated guide rods reduce the need for additional machine components
Specifications
| Size | 16, 20 |
|---|---|
| Positioning repeatability | ±0.02 mm |
| Lead | 1, 2 mm |
| Ball screw | ø4, ø6 |
| Stroke | 30 / 50 / 75 mm |
| Anti-rotation tolerance | ±0.06° |
| Sensor switch | RDC(V), RQC(V) |
| With step motor | □25, □28, □35 |
| Rated | Moment load : 0.7, 2 N.m Axial load : 0.7, 0.95 kg |
| Max. speed | SM : ≤ 50, ≤ 100 mm/s BM : ≤ 50, ≤ 100 mm/s OBM : ≤ 42, ≤ 84 mm/s |
| Max. thrust(*) | SM : 470, 206 N BM : 665, 1196N |
| Remark | * Thrust and operating speed are subject to variation depending on cable length, load, stroke, and mounting conditions. The thrust tolerance is ±20%. All specified values are based on 250 rpm motor operation. |
Technical Features
- High anti-rotation accuracy
- Compact and lightweight
- Can withstand torque and side loads
- Three mounting directions
- Standard with magnet
