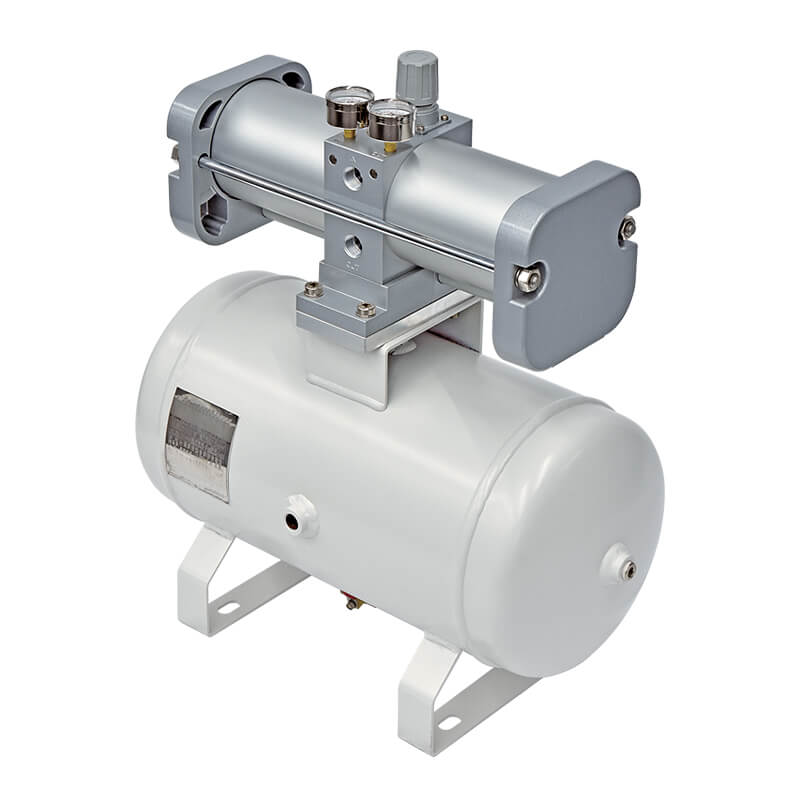

Increase the primary pressure in the air line up to twice. Air-only operation requires no power supply, reduces heat generation, and allows easy installation. Industrial Automation & Smart Manufacturing, Automotive Manufacturing, Electronics Manufacturing, Semiconductor Equipment, CNC Machining & Machine Tools, Packaging Machinery.
Highlights
- Space Saving Extended Lifespan. Compact, low-heat, and easy to install.
- Material Upgrade. Switch valve features ultra-durable metal for enhanced wear resistance.
- Energy-Saving & Eco-Friendly. Reduces both power and air pressure consumption, enhancing energy efficiency.
- Cost Reduction. No power supply needed — pressurizes only the necessary areas, achieving energy and cost savings across the entire air compression pipeline.
- Extended Lifespan. Ultra-durable metal construction significantly prolongs operational life.
Specifications
| Medium | Compressed air |
|---|---|
| Operating pressure range | 0.2~1 MPa, 0.2~1.6 MPa |
| Supply pressure range | 0.1~1 MPa |
| Ambient temperature | +2~+50°C (No freezing) |
| Attachment | Pressure gauge: PG-25, PG-40W, PG-40W-20K |
| Option | A: Precision filter regulator: A-BA-03, A-BA-04 S: Silencer: MSLT-03, MSLT-04 V: Drain valve & piping joint: V-BA-02 |
| Weight (Booster regulator with air tank) | 12~34 kg |
| Applicable model (Booster regulator) (※1) | MVBA-2100, MVBA-4100, MVBA-4300 |
| IN, OUT, EXH port (Booster regulator) | Rc3/8, Rc1/2 |
| Applicable model (Air tank) (※2) | MVBAT10A, MVBAT20A, MVBAT21B, MVBAT21C, MVBAT22HC |
| OUT port Size (Air tank) | Rc3/8, Rc1/2 |
| IN Port Size (Air tank) | No piping thread provided |
| Safety valve sqare port (Air tank) | Rc3/8 |
| Drain valve port size (Air tank) | Rc1/4 |
| Max. operating pressure (Air tank) | 2 MPa |
| Proof pressure (Air tank) | 1.6 ~ 3.3 MPa |
| Ambient & operating fluid temperature (Air tank) | 0~+75°C |
| Volume (Air tank) | 10, 20 L |
| Material (Air tank) | Carbon Steel |
| Painting (Air tank) | Exterior: Cool gray-white baked paint, Interior: No anti-rust coating |
| Weight (Air tank) | 8~24.5 kg |
| Remark | ※1. When selecting option A (precision filter regulator), the booster will use Rc thread specification exclusively. Refer to "MVBA series spec. ※2. Not recommended for use solely as an air tank. Only Rc threading is available. For those opting for G or NPT threading, one male-to-female OUT port adapter (1 pc) is included as needed ※3. Drain valves and precision filter regulator are assembled for shipment. Attachment and optional accessories are included with the shipment separately and are not pre-assembled. |
Technical Features
- Increase the primary pressure in the air line up to twice.
- Air-only operation requires no power supply.
