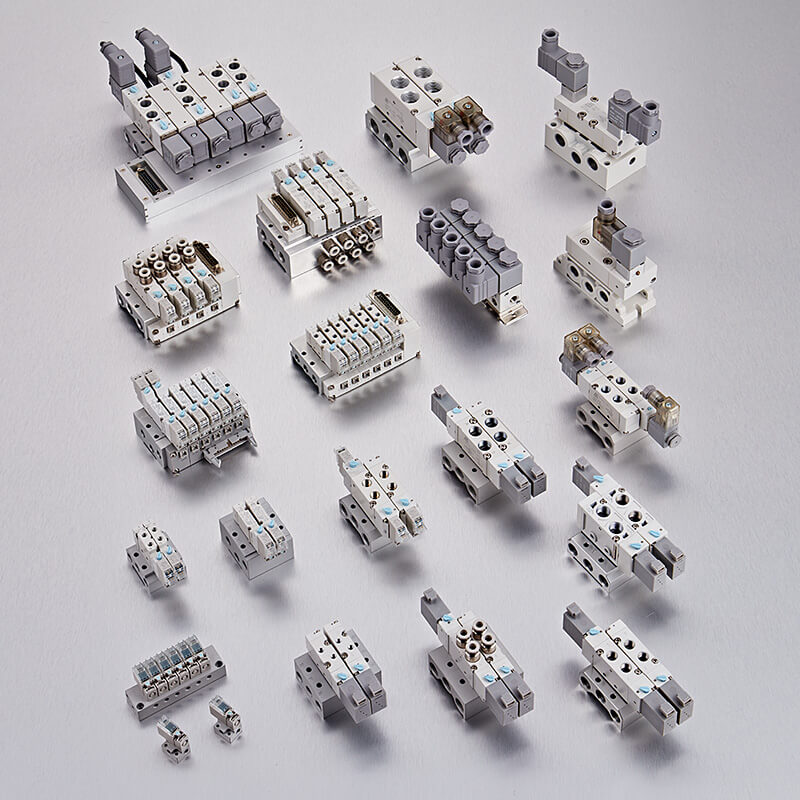

Solenoid Valve

Model: MVSC-220

Supplier: MINDMAN INDUSTRIAL CO., LTD.

The MVSC-220 series solenoid valve features low power consumption, fast response, reliable sealing, and flexible configurations. It supports both individual and manifold installation for reliable and efficient pneumatic control in automation equipment.

Highlights

  • Built for high-cycle automation
  • Fast pneumatic switching
  • Low-power operation
  • Reliable sealing performance
  • Flexible system integration
  • Easy wiring and manual testing
  • Power-saving and explosion-proof options
Application Scenarios Automation LinesPneumatic cylinder control in automated production lines

Specifications

Bore No. 6A, 8A
Port size 1/4, 1/8
No. of port 3, 5
No. of position 2, 3
Medium Air
Operating pressure range 0.2~0.8 MPa, 0.3~0.8 MPa
Operating pressure (LP) 0~0.8 MPa
Pilot pressure range (LP) (0.34×P+0.1)~0.5 MPa( P: Operating pressure)
Proof pressure (MPa) 1
Effective orifice (mm²) 18, 16
Response time (ms) 30, 40
Ambient temperature(°C) -5~+50 (No freezing)
Voltage AC110V, 220V, 24V (50/60)Hz, DC24V, 12V
Power consumption Standard: AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
Available voltage range ±10 %
Insulation class F class
Weight Manifold: 3B: 56n+77g, 3M: 71n+114g, 5B: 61n+61,137n+157g (n: Stations)

Technical Features

  • The contact-spring terminal design enables quick wiring and helps reduce the risk of wire damage.
  • The terminal housing is made of PA6 nylon, providing good chemical and weather resistance.
  • The drop-shaped manual override can be pushed or rotated by hand for convenient installation testing and maintenance.
  • All products go through leakage test according to JIS regulation.
  • The NBR DISK seal and U-packing design provide high wear resistance and reliable sealing performance.
  • The standard DC24V model consumes 2W, while the power-saving version reduces consumption to 0.5W after switching.
  • The high-permeability resulfurized stainless-steel plunger supports smooth and rapid valve actuation.
  • The coil uses Class F insulation, while the enamelled wire uses Class H heat-resistant insulation.
  • A response time as fast as approximately 30 ms supports rapid pneumatic switching.
  • The valve offers a service life of up to 50 million cycles under normal operating conditions.
