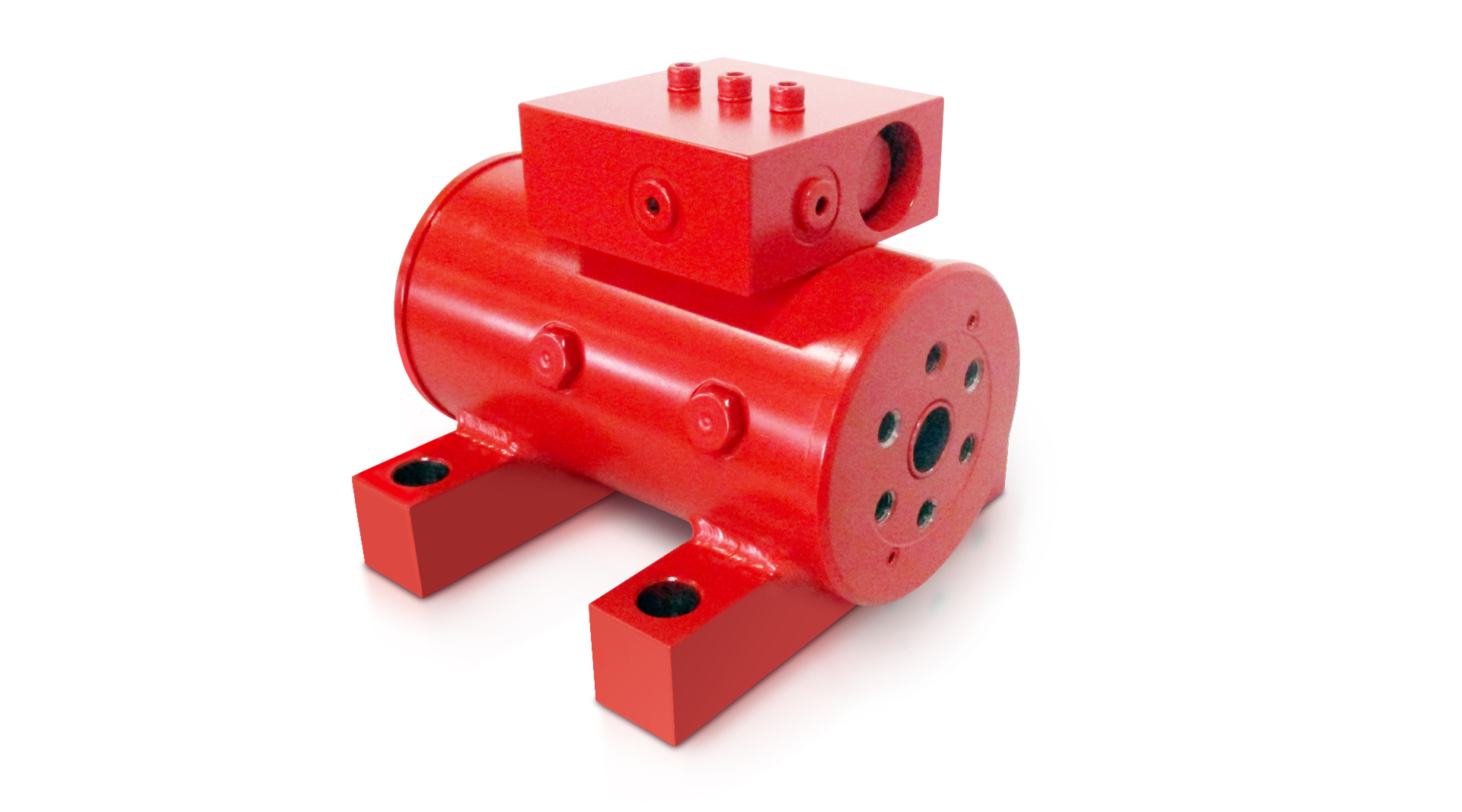

ASHUN Hydraulic Rotary Actuators feature a double-helix meshing drive design that converts linear motion into rotary motion, ensuring high precision, stability, and outstanding load capacity. Their compact design is ideal for confined spaces, offering high torque output and excellent durability, with an optional safety valve to prevent overpressure.
Highlights
- High torque output and excellent load capacity.
- Outstanding durability for use in harsh environments.
- Compact design ideal for installation in confined spaces.
- Leak-free internal motion ensures stable position holding.
- Precisely optimized structural dimensions for superior performance.
- Optional safety valve available to prevent overpressure.
- ASHUN offers customized mounting solutions for our rotary actuators, designed to meet the unique requirements of diverse applications.
Specifications
| Drive Torque | 5500 ~ 125000in-lb |
|---|---|
| Holding Torque | 11800 ~ 306000in-lb |
| Moment Capacity Flange Mount | 12000 ~ 343750in-lb |
| Radial Capacity | 3050 ~ 18000lb |
| Axial Capacity | 1100 ~ 13000lb |
| Displacement 180° | 8.05 ~ 216 |
| Displacement 360° | 14.3 ~ 432 |
| Angle 180° Weight | 27 ~ 490lb |
| Angle 360° Weight | 42 ~ 630lb |
| Mount Type | Flange Mount, Bracket Mount |
| Valve Options | No Valve, Safety Valve |
| Angle Rotation | 180°, 360°, Customized |
| Seals | Standard, Customized |
| Metric and English | Metric System, English System |
Technical Features
- ASHUN's innovative 'Hydraulic Rotary Actuators' adopt a double-helix meshing drive design that transforms the piston's linear motion into rotary motion.
- The design features an inner helical gear on the tube that engages with the outer helical gear on the piston, and an outer helical gear on the integrated central shaft that engages with the inner helical gear on the piston. This configuration ensures high dimensional precision, exceptional stability, and outstanding load capacity.
- The driving torque and holding torque are almost linear with the hydraulic pressure.
- As load increases, drive torque may decrease by as much as 15%.
