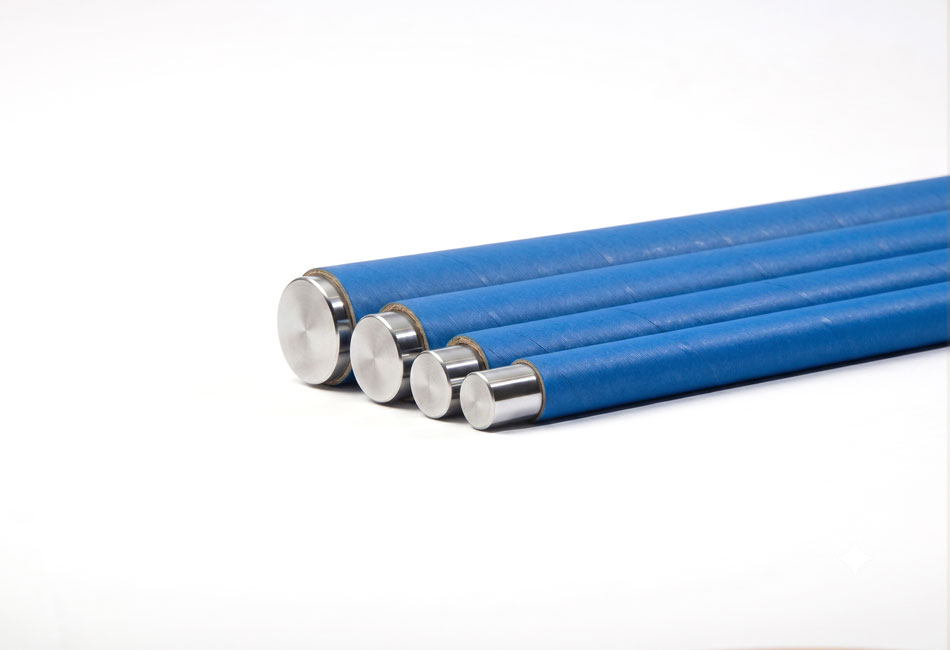

S45C Hard Chrome Plated Steel Bars are widely used across hydraulic systems and industrial equipment because they offer a well-balanced combination of mechanical strength and surface performance. By combining medium carbon steel with a hard chrome-plated layer, these bars deliver reliable performance in applications that require durability, smooth motion, and stable sealing behavior.
Highlights
- High-strength S45C core for load-bearing applications
- Hard chrome hardness of HV850 minimum
- Ra 0.2 μm maximum for smooth, low-friction motion
- Strong corrosion resistance for demanding environments
- Multiple ISO tolerances for precision fitting
- Straightness of 0.3 mm/m for stable linear motion
- Multiple sizes and custom lengths available
Specifications
| Thickness of Chrome Layer | <Ø20 : 15µm min, ≥Ø20 : 20µm min |
|---|---|
| Surface Roughness | Ra 0.2µm max. |
| External Diameter Accuracy | ISO h7, f7, h8, f8, g6 |
| Standard Length | 3000mm & 6000mm & By request |
| Hardness of Chrome Layer | HV850 min.(0.1) |
| Hardening Hardness | HRC 53±2 |
| Case Depth | 1mm~3mm(according to the center size) |
Technical Features
- High Surface Hardness for Superior Wear Resistance
- Excellent Corrosion Resistance in Harsh Environments
- Low Friction Surface for Smooth Motion Performance
- Strong Core Strength for Load-Bearing Applications
- High Dimensional Accuracy for Precision Systems
- Excellent Compatibility with Sealing Systems
