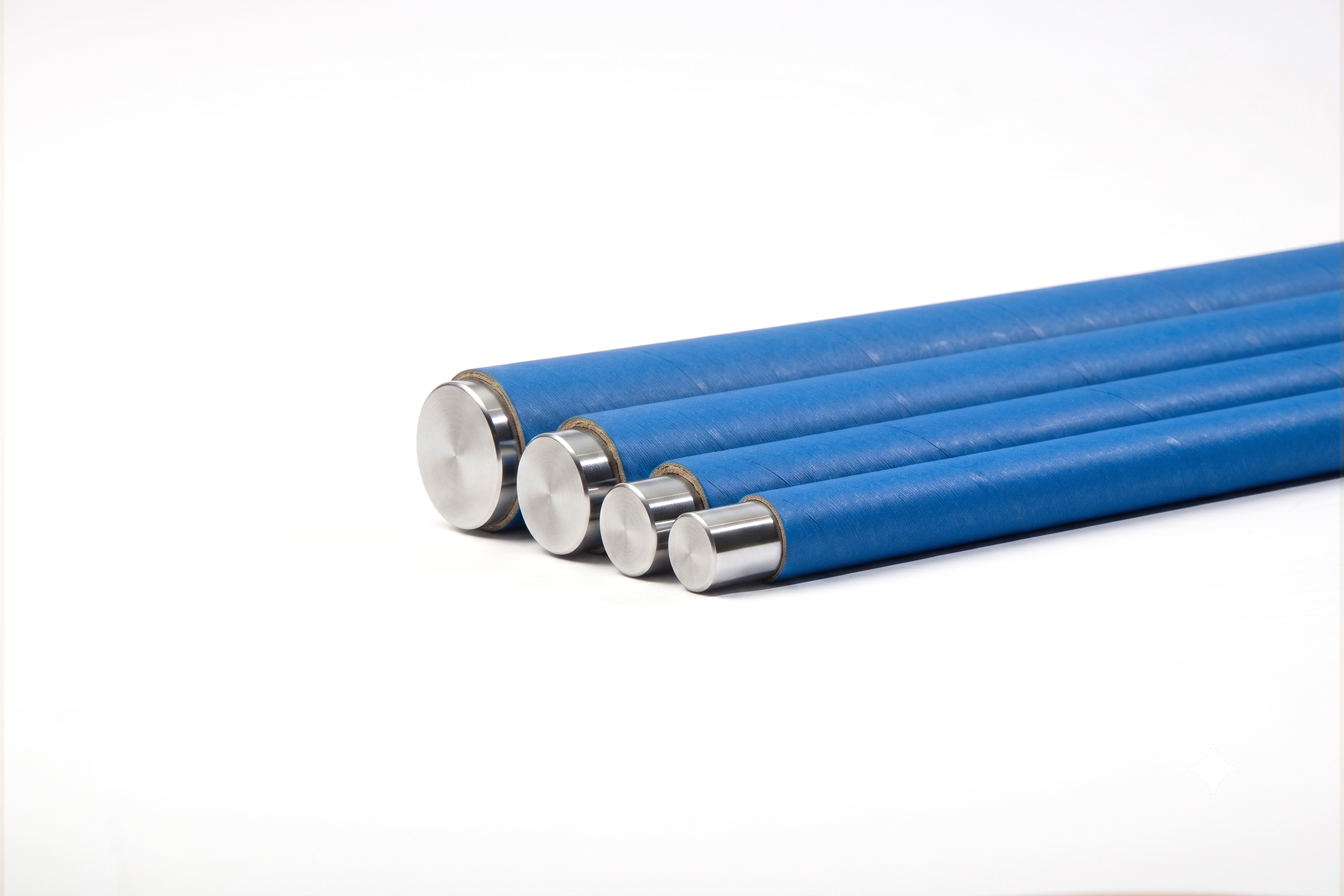

38MnVS6 is a high-strength micro-alloyed steel with excellent toughness, machinability, and fatigue resistance, making it suitable for high-performance hydraulic cylinder piston rods. After precision grinding and hard chrome plating, it offers excellent surface hardness, wear resistance, corrosion protection, and dimensional stability. It is widely used in construction machinery, agricultural mach
Highlights
- High-strength 38MnVS6 core for load-bearing applications
- Hard chrome hardness of HV850 minimum
- Ra 0.2µm maximum for smooth, low-friction motion
- Strong corrosion resistance for demanding environments
- Multiple ISO tolerances for precision fitting
- Straightness of 0.3 mm/m for stable linear motion
- Multiple sizes and custom lengths available
Specifications
| Thickness of Chrome Layer | <Ø20: 15µm min, ≥Ø20: 20µm min |
|---|---|
| Surface Roughness | Ra 0.2µm max. |
| External Diameter Accuracy | ISO h7, f7, h8, f8, g6 |
| Standard Length | Ø6~25.4: 3000mm, Ø28~200: 6000mm & By request |
| Hardness of Chrome Layer | HV850 min.(0.1) |
Technical Features
- High Surface Hardness for Superior Wear Resistance
- Excellent Corrosion Resistance in Harsh Environments
- Low Friction Surface for Smooth Motion Performance
- Strong Core Strength for Load-Bearing Applications
- High Dimensional Accuracy for Precision Systems
- Excellent Compatibility with Sealing Systems
