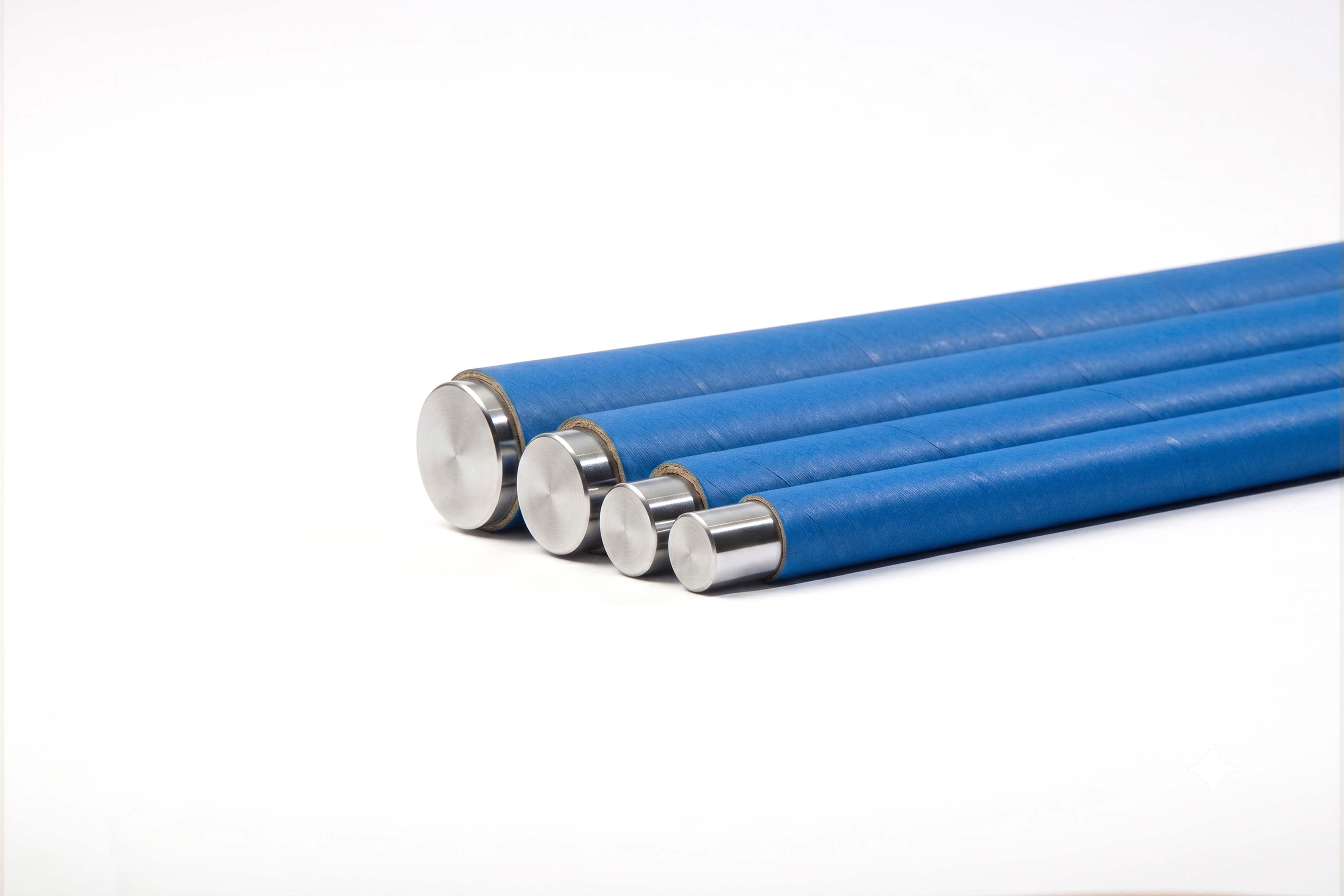

38MnVS6 Induction Hardened Hard Chrome Plated Steel Bar
Model：38MnVS6
Supplier： FU-LONG METAL INDUSTRIAL CO., LTD.
38MnVS6 is a micro-alloyed steel offering high strength, excellent toughness, and good suitability for induction hardening and precision machining. After hardening and hard chrome plating, it delivers excellent wear resistance, fatigue strength, and load-bearing capacity, extending piston rod service life. It is ideal for heavy-duty hydraulic cylinders, agricultural machinery, construction equipme
Highlights
- High-strength 38MnVS6 core for load-bearing applications
- Hard chrome hardness of HV850 minimum
- Ra 0.2µm maximum for smooth, low-friction motion
- Strong corrosion resistance for demanding environments
- Multiple ISO tolerances for precision fitting
- Straightness of 0.3 mm/m for stable linear motion
- Multiple sizes and custom lengths available
Specifications
| Thickness of Chrome Layer | <Ø20:15µm min, ≥Ø20: 20µm min |
|---|---|
| Surface Roughness | Ra 0.2µm max. |
| External Diameter Accuracy | ISO h7, f7, h8, f8, g6 |
| Standard Length | Ø6~25.4: 3000mm, Ø28~200: 6000mm & By request |
| Hardness of Chrome Layer | HV850 min.(0.1) |
| Hardening Hardness | HRC 51 min. |
| Case Depth | 1mm~3mm(according to the center size) |
Technical Features
- High Surface Hardness for Superior Wear Resistance
- Excellent Corrosion Resistance in Harsh Environments
- Low Friction Surface for Smooth Motion Performance
- Strong Core Strength for Load-Bearing Applications
- High Dimensional Accuracy for Precision Systems
- Excellent Compatibility with Sealing Systems
