Chrome Plated Tube (OD)

Model: JIS STKM13C, STKM11A, STKM13A, JIS S45C, SAE1045, EN C45E, E355, 42CrMo4, EN19

Supplier: GOLDEN ASIA INDUSTRIAL CO., LTD.

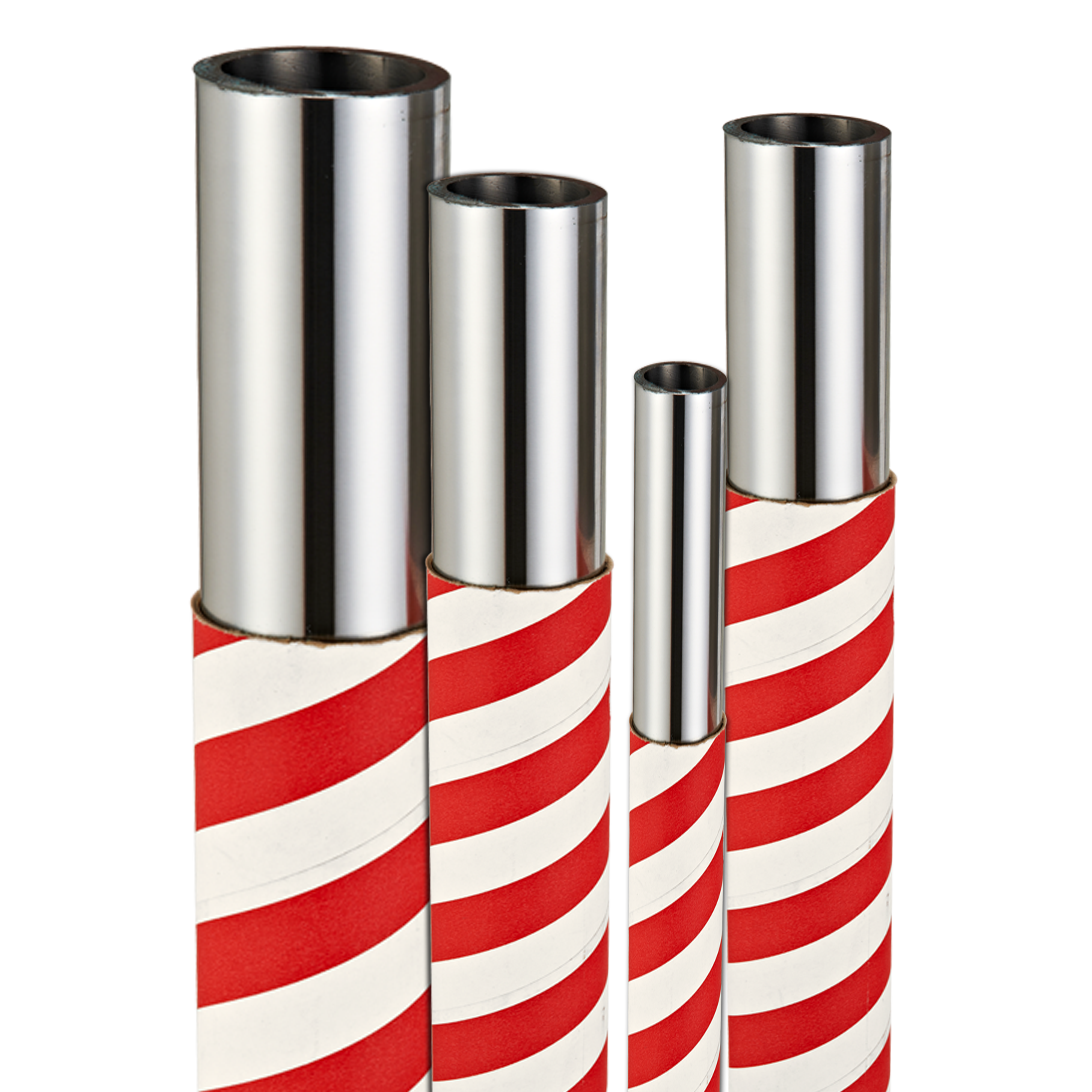

The chrome plated OD tube is a hollow steel tube hard chrome plated on its outer diameter, reaching HV850+ surface hardness with a 15–20μm chrome layer. It's used mainly for telescopic cylinder barrels and exposed hard chrome plated bars that require external wear and corrosion resistance.

Highlights

  • Surface hardness HV850+ for strong outer-diameter wear resistance
  • Chrome layer thickness: min 15 μm below Φ22.225mm, min 20 μm at Φ24mm and above
  • Surface roughness ≤ Ra0.2μm for a smooth, corrosion-resistant finish
  • Roundness controlled to 1/2 of tolerance for high concentricity and sealing performance
  • OD tolerance f8 for precise installation and system alignment
  • Available in JIS STKM13C, STKM11A, STKM13A, JIS S45C, SAE1045, EN C45E, E355, 42CrMo4, EN19
  • Standard length 2M and up, custom specifications available
Application Scenarios Automatic Lifting PlatformPlastic Injection ClampingPneumatic cylinder control in automated production linesPlastic Injection Molding MachinesAutomation LinesConstruction & Heavy MachineryAgricultural MachineryForklifts & Material HandlingMarine & Offshore

Specifications

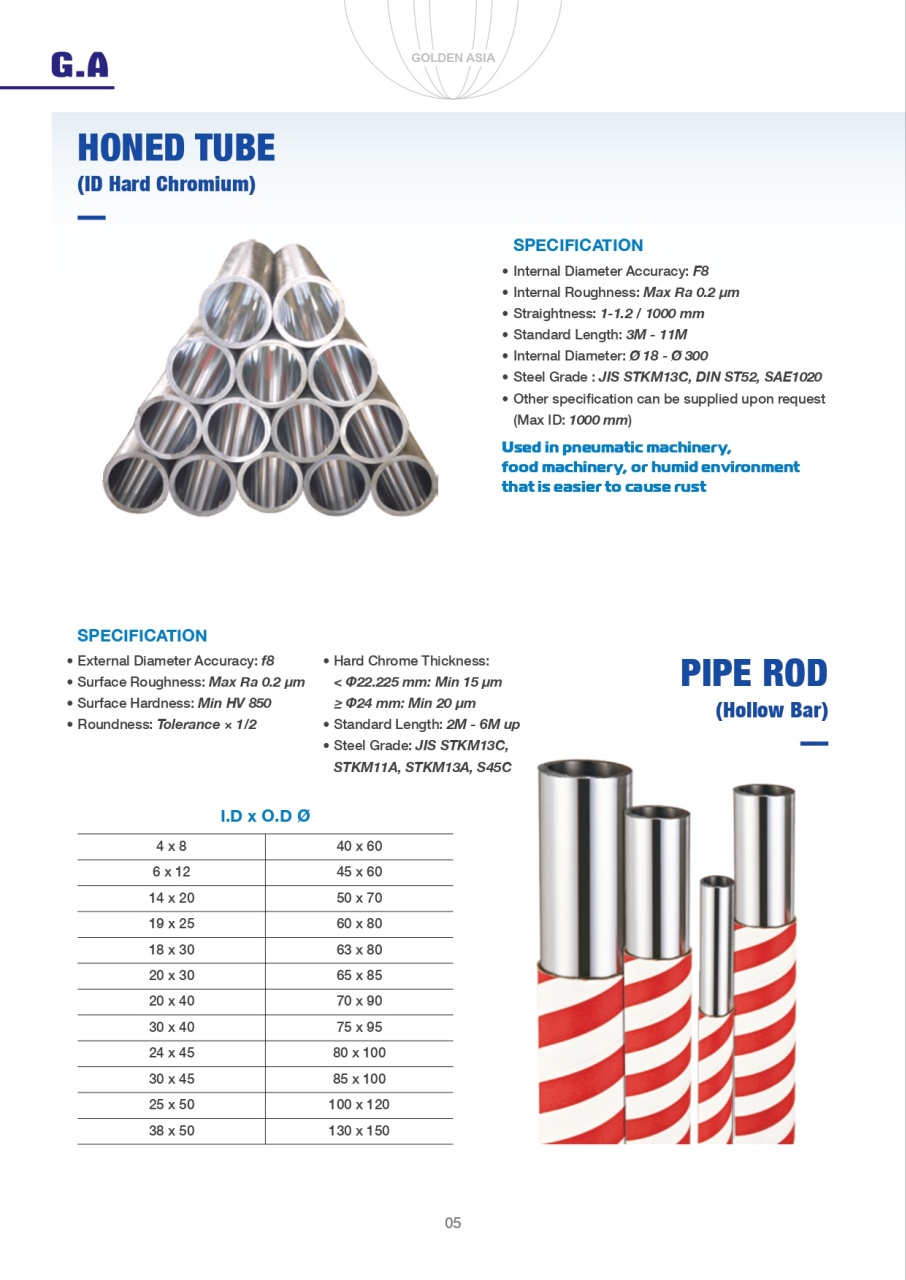

OD Tolerance f8
Surface Roughness Ra 0.2μm max
Surface Hardness HV 850 min
Roundness 1/2 of tolerance
Chrome Thickness Below Φ22.225mm: min 15μm Φ24mm and above: min 20μm
Standard Length 2M and up (custom available)
Steel Grades JIS STKM13C, STKM11A, STKM13A, JIS S45C, SAE1045, EN C45E, E355, 42CrMo4, EN19

Technical Features

  • Hard Chrome OD Protection — Improves wear and corrosion resistance on exposed surfaces, extending telescopic barrel life
  • High Roundness & Concentricity — Ensures smooth fit with internal components and reduces seal wear
  • Multiple Steel Grade Options — Choose the right carbon or structural steel grade for your load and machining needs
  • Built for Outdoor & Marine Use — Hard chrome layer resists salt spray and moisture exposure
  • Complements Honed Tubes — Chrome plated OD tubes handle external protection while honed tubes handle internal sealing
