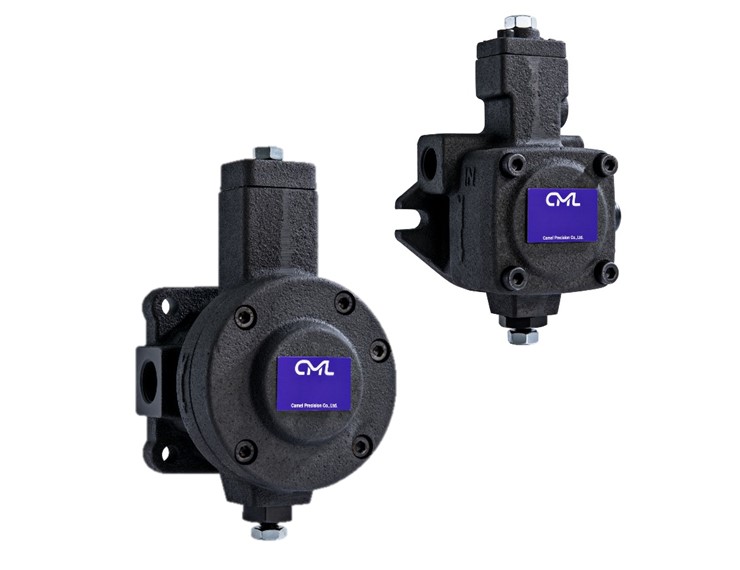

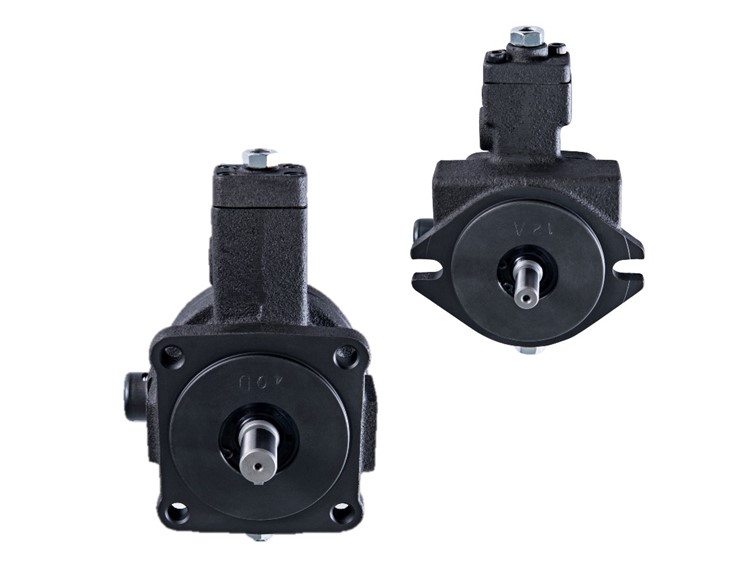

CML Low Pressure Variable Vane Pump pressure can be adjusted in the range of 5 - 70 bar, and the flow adjust range is 8 - 40 L/min. Before inquiring, you can inform the working pressure and flow, as well as the working conditions of the machine, and we will select the most suitable model for you.
Specifications
| Shaft Type | Standard, 7T, 9T |
|---|---|
| Body Thread | PT, BSPP, NPT |
| Shaft Size | Ø12.7mm, Ø15.875mm, Ø19.05mm |
| Pressure Range | AS: 5 – 10 A: 10 – 20 B: 15 – 35 C: 30 – 55 D: 50 – 70 |
| Displacement | 12/20/30/40 |
| Shaft Speed Range | 1800 |
| Shaft Speed Range | 800 |
Technical Features
- High efficiency, high-pressure, smooth operation.
- Extremely low vibration and noise level.
- Instant and stable response for precise machining.
- Easy adjustment in handling and maintenance.
- Sturdy structure for high efficiency and long service life.
