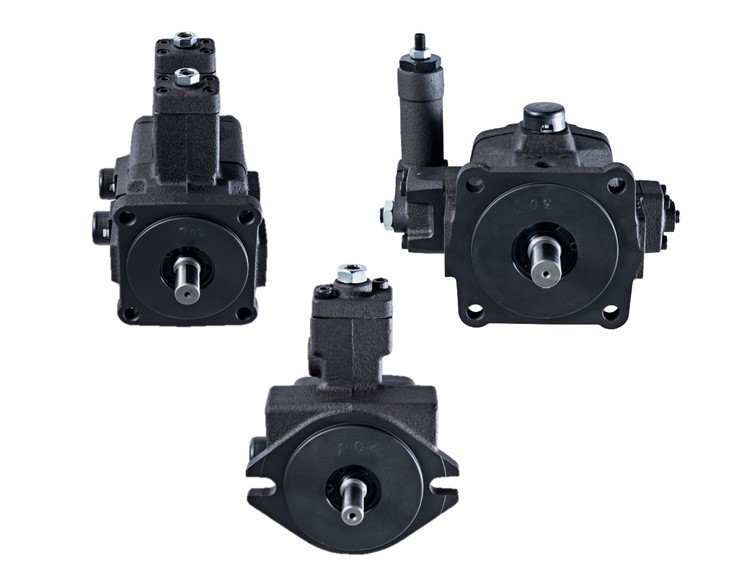

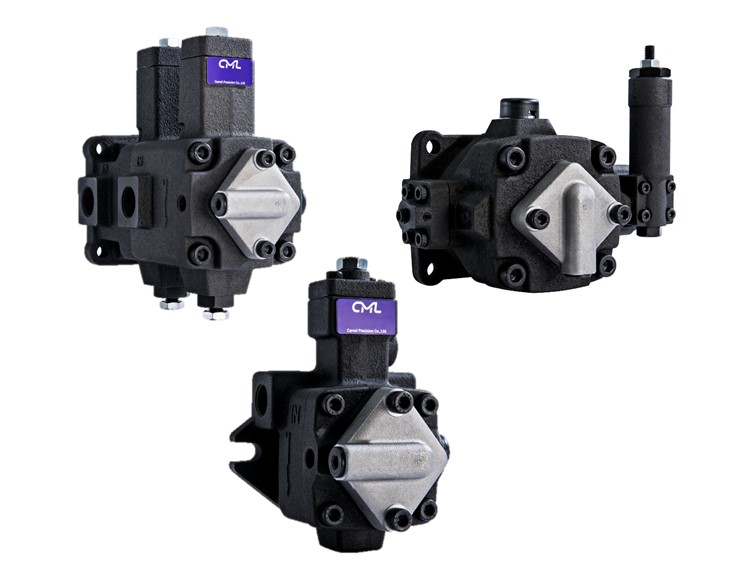

Variable Displacement Vane Pump with Cooling Circulation Pump
Model: VCM-SF+CG, VCM-SM+CG, VCM-DF+CG
Supplier: CAMEL PRECISION CO., LTD.
The CML Variable Displacement Vane Pump with Cooling Circulation Pump series features a unique patented attachment design that reduces overall pump length and weight, making the unit more compact. The built-in pressure setting maintains 3 bar, protecting the cooling system's pipelines. Proven by tests, it significantly enhances cooling efficiency when combined with a suitable cooler.
Application Scenarios Machine Tools
Specifications
| Body Thread | PT, BSPP, NPT |
|---|---|
| Shaft Size | Ø12.7mm, Ø19.05mm |
| Cooling Circulation Pump | 4CG: 4 L/min 6CG: 6 L/min |
| Pressure Range | SF: Displacement12/20/30/40 Pressure Range A: 10 - 20 B: 15 - 35 C: 30 - 55 D: 50 - 70 SM: Displacement30 Pressure Range A: 15 - 35 B: 20 - 70 C: 50 - 105 D: 70 - 140 泵流量40 A: 15 - 35 B: 20 - 70 DF: Displacement30/40 Shaft End Pump Pressure A:10-20 B:15-35 C:30-55 D:50-70 Secondary Pump Displacement 30/40 Secondary Pump Pressure A:10-20 B:15-35 C:30-55 D:50-70 |
Technical Features
- Unique and patented attachment design, it reduces overall length and dimension after attached to a variable displacement vane pump, the entire combination became more compact. This cooling circulation pump sucks in heated oil from the tank and delivers to radiator. It effectively reduced oil temperature under continuous process of circulation.
- Cooling circulation pump has built-in pressure setting, maintaining pressure at 3 bar, protect pipeline of cooling system.
- Proven by tests, to combine with proper cooler, it performs a lot better cooling efficiency than cooling only the oil from drain port.
- By reducing size of reservoir, it could save space and volume of hydraulic oil. At the end, it saved cost.
- Eco-friendly, reducing consumption supplies, and extending product life.
- Effectively restrain oil temperature, stabilize operation conditions, and improve machining accuracy.
